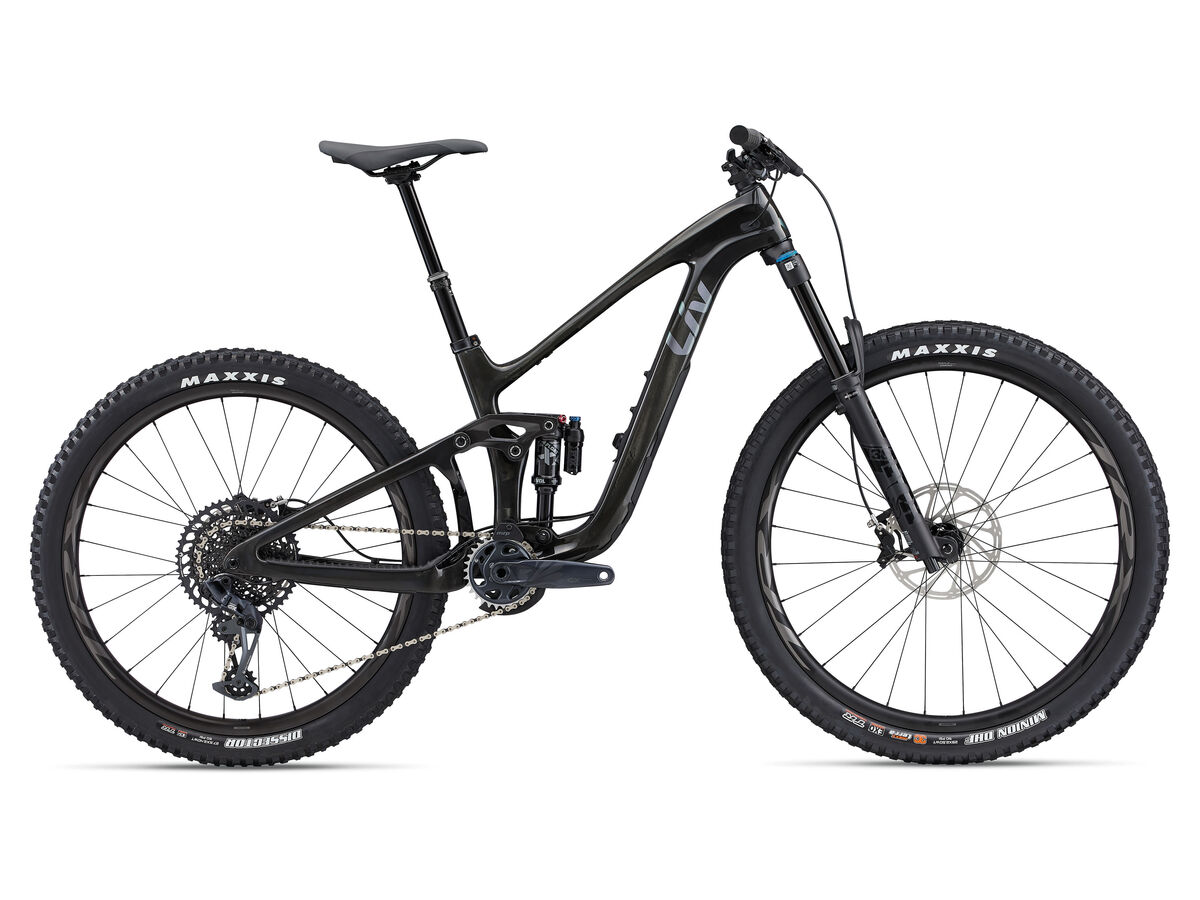

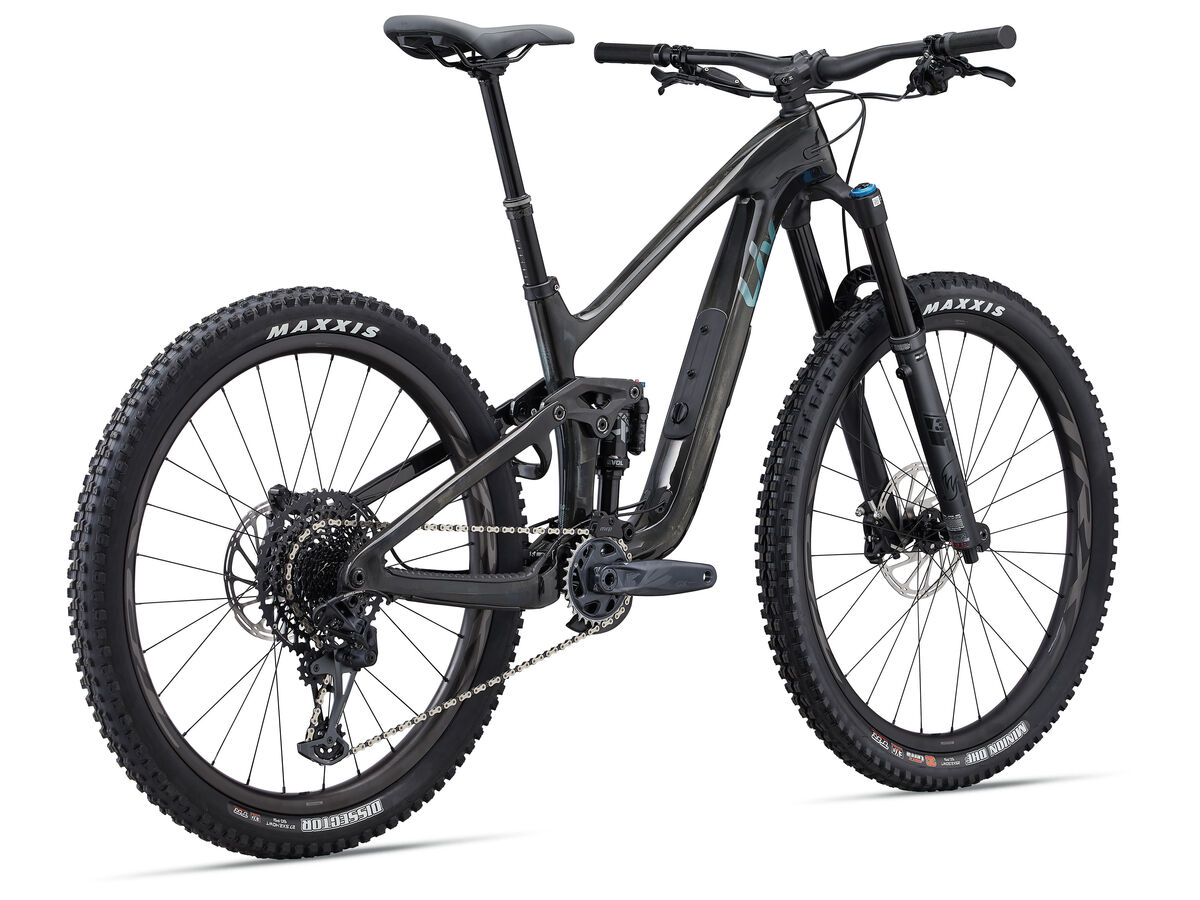

Liv Intrigue LT Advanced Pro 1 2023
|Options||XS Raw Carbon
S Raw Carbon
M Raw Carbon
|Description||Whether you're looking ahead to park days, backcountry singletrack adventures, or your next enduro race - the all-new Intrigue LT Advanced Pro equips you with the versatility of adjustable frame geometry, the exceptional efficiency of Advanced-Grade Composite and the ultra-smooth performance of Maestro suspension so you can do what you do best - SHRED!Advanced Composite Technology - Liv's High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv's Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.

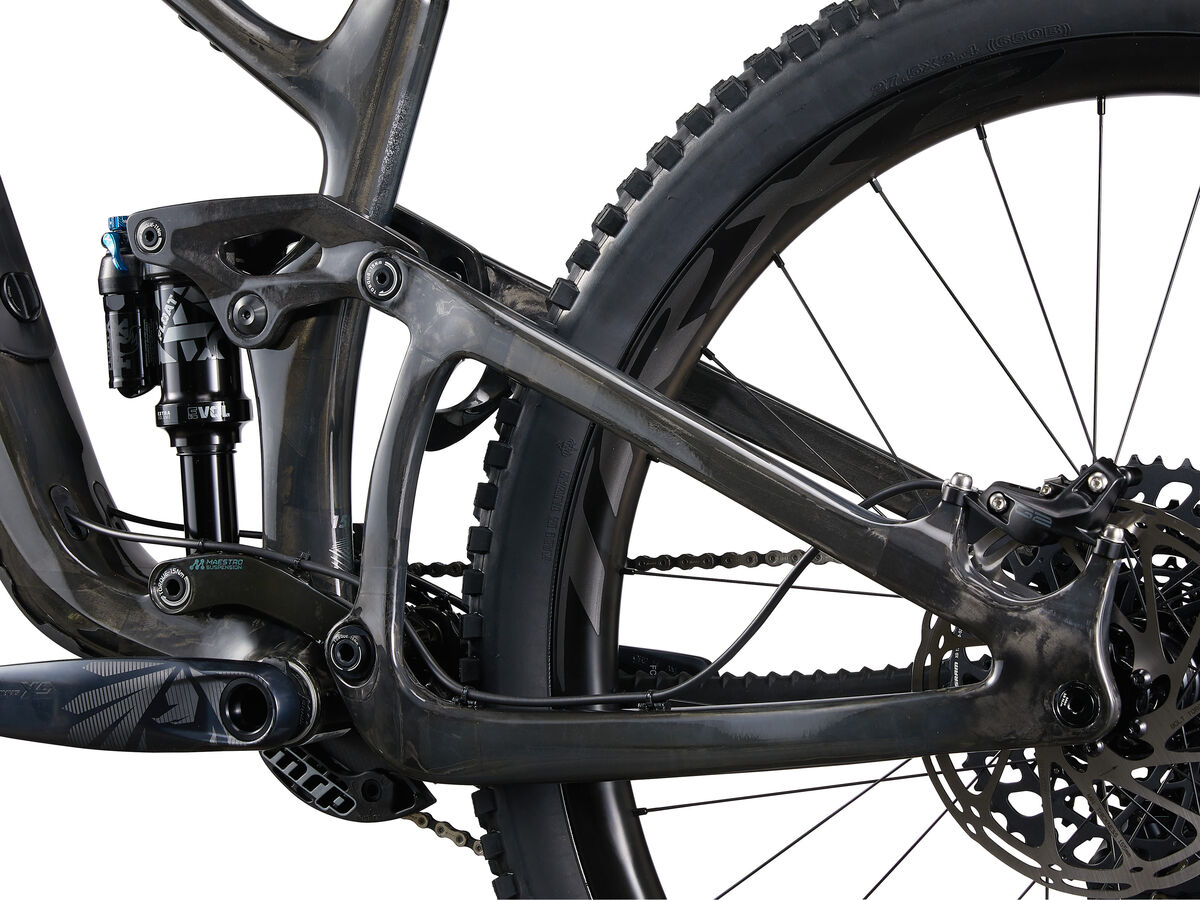

Maestro Suspension Technology - Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
OverDrive - Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4" lower and 1 1/8" upper for road, 1 1/2" lower and 1 1/8" upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System - Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant's Tubeless System makes it easier than ever to experience all these benefits.
Flip Chip - Maestro 3 - This all-new technology allows you to quickly adjust the geometry of your bike to better suit riding conditions and rear-wheel size choice. Using two different flip chips - a combination high/ low and a dedicated mid-position chip - riders can change the head tube angle, seat tube angle and bottom bracket height using eccentric hardware located on the upper rocker arm of the rear suspension.
Specifications:Sizes XS and S: MX only M: 29" F&R out of the box, MX compatible
Colours Raw Carbon/Chrome

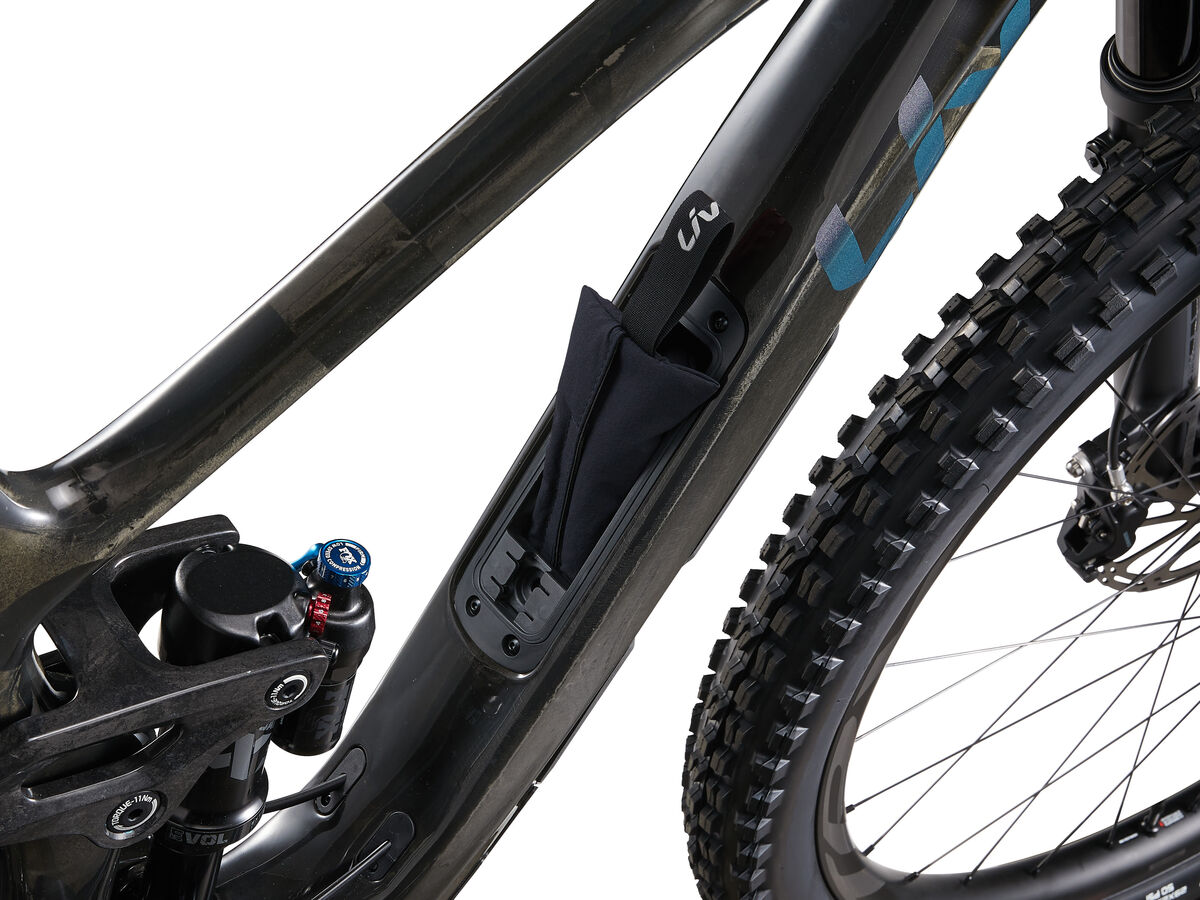

Frame Advanced-Grade Composite front and rear triangles, 150mm Maestro Suspension, flip chip - Maestro 3, integrated down tube storage

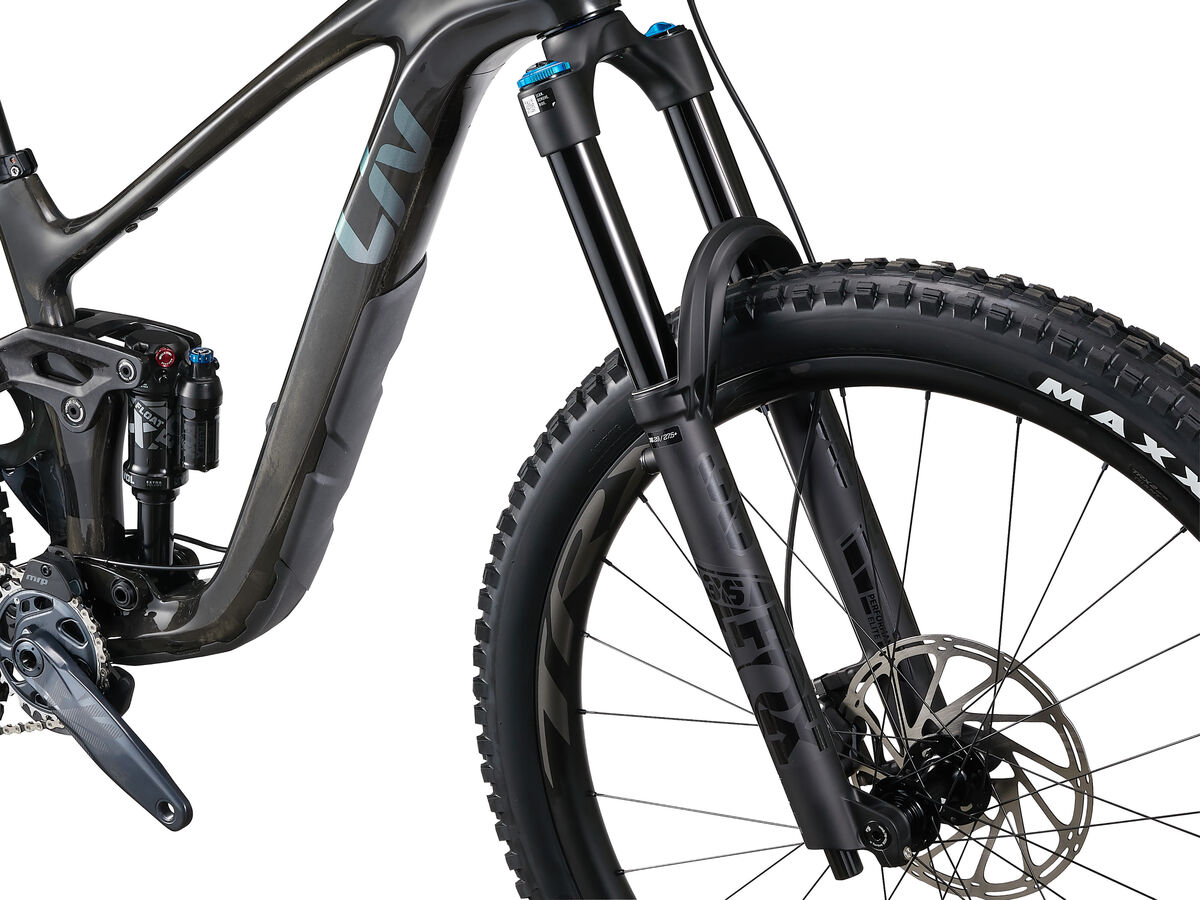

Fork Fox 36 Performance Elite, 160mm, Grip damper, Boost, 15x110, Kabolt, tapered, 44mm offset

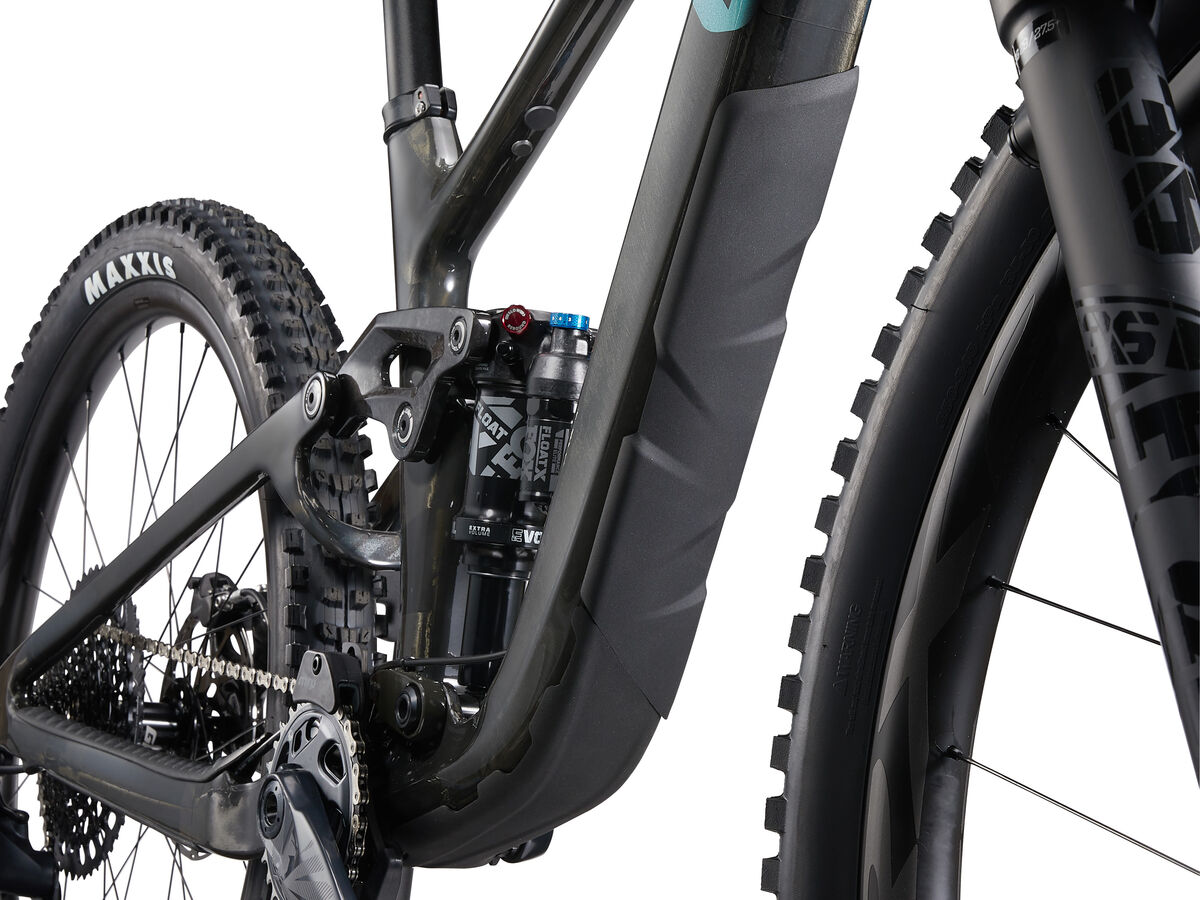

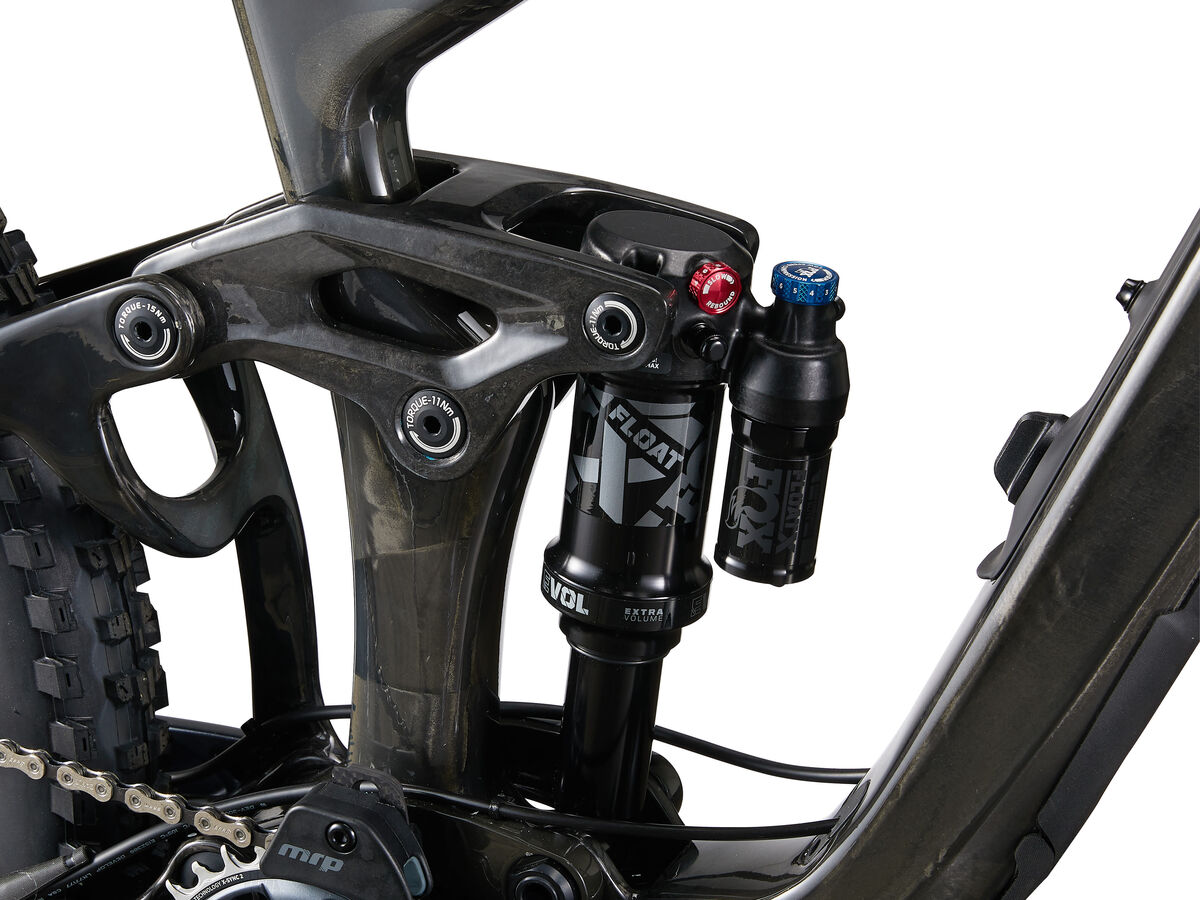

Shock Fox Float X Performance Elite 185x55, custom tuned for Liv

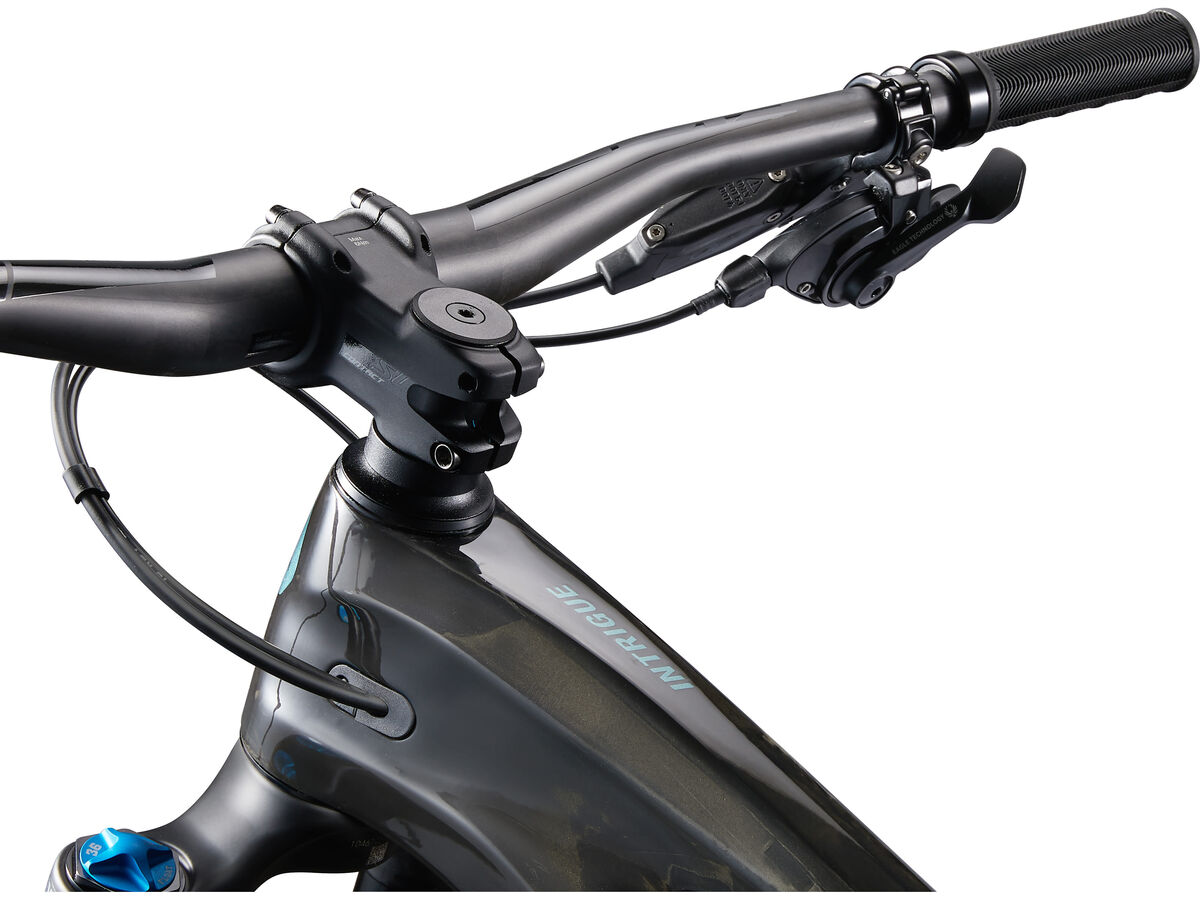

Handlebar Giant Contact SLR TR35, composite, 35mm, 20mm rise XS: 760mm, S: 760mm, M: 760mm
Grips Liv Tactal Pro Single Lock-On XS and S: 110mm, M: 120mm
Stem Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm
Seatpost TranzX travel-adjustable dropper, remote XS: 120-150mm travel / 30.9 x 459mm S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm
Saddle Liv Sylvia
Shifters SRAM GX Eagle, 1x12

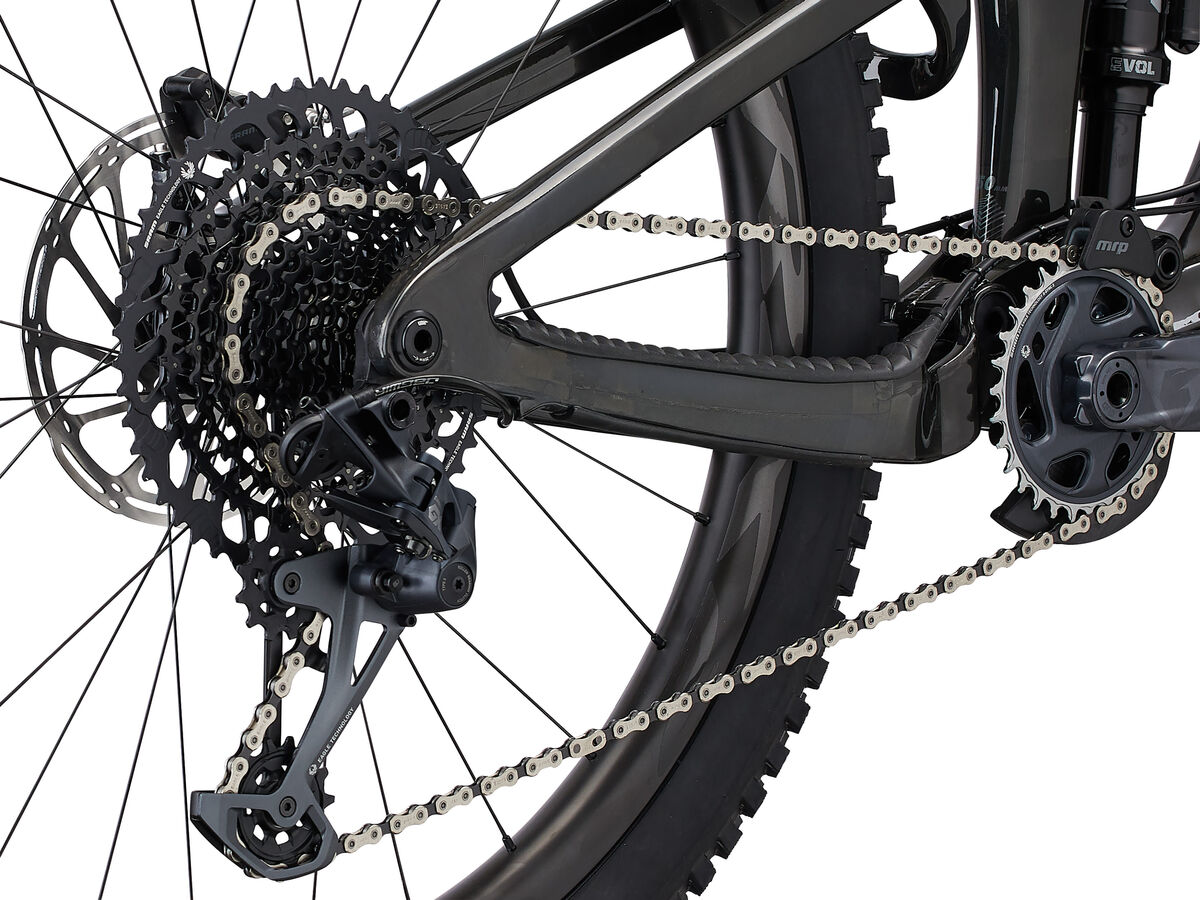

Rear Derailleur SRAM GX Eagle
Brakes SRAM G2 RSC, hydraulic, SRAM CenterLine rotors [F]200mm, [R]180mm
Brake Levers SRAM G2 RSC
Cassette SRAM GX Eagle, 10x52
Chain SRAM GX
Crankset SRAM GX, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm
Bottom Bracket SRAM DUB, press fit
Rims Giant TRX 2 29 WheelSystem, composite, 30mm inner width XS and S: [F] 29", [R] 27.5" M: [F] 29", [R] 29"
Hubs [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Tyres [Size XS, S and M, Front] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [Size XS and S, Rear] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless [Size M Rear] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
Extras MRP AMg V2 chainguide, 3M tailgate protector, factory tubeless set up, max tire size 2.5", max chainring size 32t, integrated down tube storage bag
