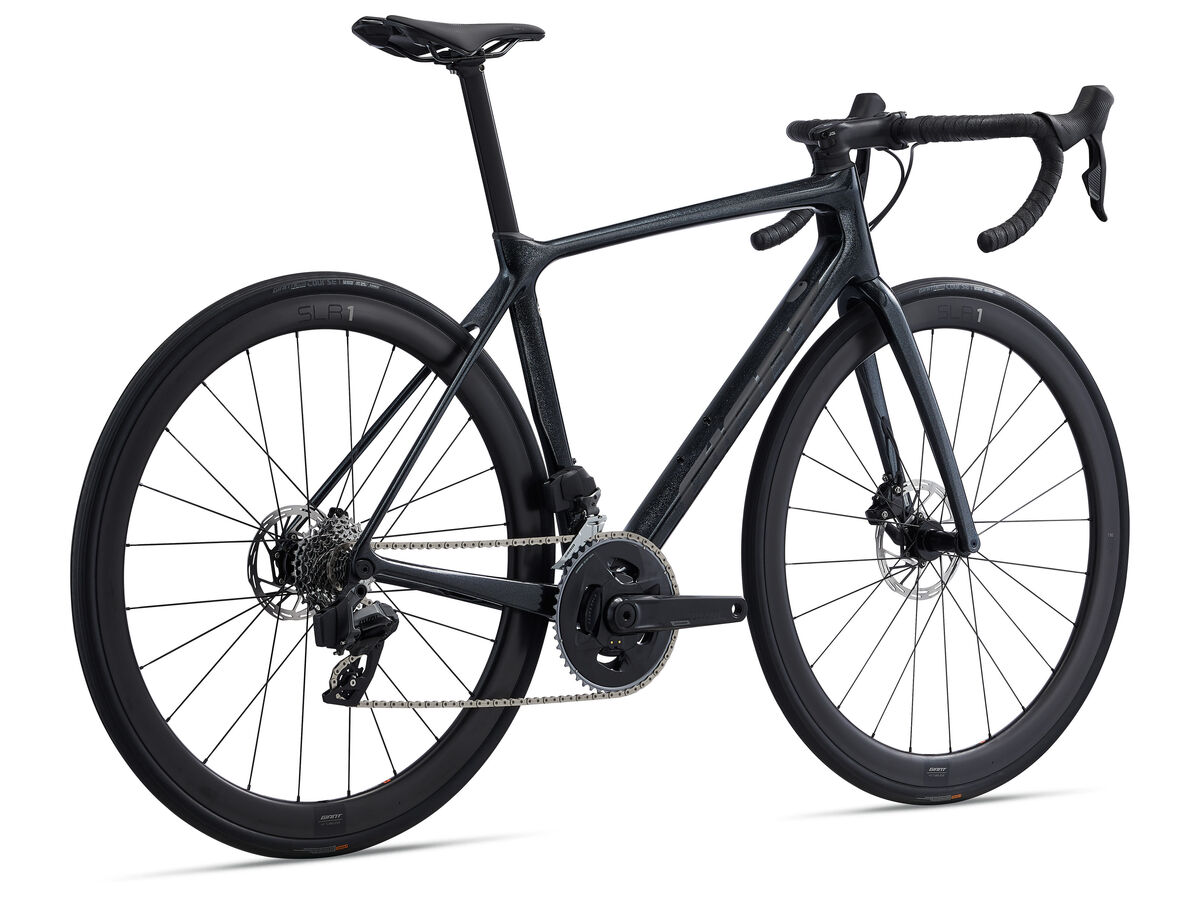

GIANT TCR Advanced Pro Disc 1 AX Black Diamond 2022
|Options||S Black Diamond
M Black Diamond
ML Black Diamond
L Black Diamond
|Description||Climb, corner and descend with speed and efficiency. From the mountains to the flats, in all types of conditions, this lightweight composite road racer takes you to the next level.Advanced Composite Technology - Giant's High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
OverDrive 2 - The most advanced steerer tube technology in today's Giant bikes. Designed to offer unprecedented front-end steering performance, the system's oversized headset bearings (1 1/2” lower, 1 1/4” upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.
Compact Road Design - Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
Tubeless System - Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant's Tubeless System makes it easier than ever to experience all these benefits.
Power Halo - Power training shouldn't be a mystery to be solved only by the pros with expensive equipment. Easy to set up, easy to use and easy to read, the all-new Power Halo is bringing metric-based training to all riders.
PowerCore - A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
RideSense Ready - This frame comes prepared to accept the Giant RideSense sensor and accompanying hardware.
Variant Seatpost - This proprietary seatpost design offers an optimized balance of light weight, superior ride quality and simple adjustment to enhance the total race performance of the TCR road range.
MegaDrive - A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.
Hookless Rim Design - Hookless rim design enhances overall durability, offers a wider inner rim width without adding extra weight and also helps create a more round tire shape providing superior grip and handling as well as added sidewall support when cornering. Additionally, without the rim hook to " push" the tire bead inward, hookless rim design offers a more seamless airflow between the tire and the sidewall of the rim, resulting in less drag and improved aero performance when compared to standard hook-type rims.
Specifications:Sizes S, M, M/L, L
Colours Gloss Black Diamond / Matte Panther
Frame Advanced-Grade Composite, disc
Fork Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
Handlebar Giant Contact SL S:40cm, M:42cm, M/L:42cm, L:44cm
Grips Stratus Lite 2.0
Stem Giant Contact SL S:90mm, M:100mm, M/L:110mm, L:110mm
Seatpost Giant Variant, composite, -5/+15mm offset
Saddle Giant Fleet SL
Pedals Not Included
Shifters SRAM Rival eTap AXS 2x12
Front Derailleur SRAM Rival eTap AXS
Rear Derailleur SRAM Rival eTap AXS max 36T
Brakes SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm
Brake Levers SRAM Rival eTap AXS hydraulic
Cassette SRAM Rival, 12-speed, 10x30
Chain SRAM Rival D1
Crankset SRAM Rival D1 DUB, 35/48with Power Halo power meter S:170mm, M:172.5mm, M/L:172.5mm, L:175mm
Bottom Bracket SRAM DUB, press fit
Rims Giant SLR 1 42 Carbon Disc Hookless WheelSystem (19mm inner rim width)
Hubs Giant SLR 1 42 Carbon Disc WheelSystem, 12mm thru-axle
Spokes Giant SLR 1 42 Carbon Disc WheelSystem
Tyres Giant Gavia Course 1, tubeless, 700x25c (effective width 28mm), folding
Extras Computer mount, factory tubeless set up including sealant, 32mm max tyre size
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please call shop on 01786 465 292 to confirm availability of display model and stock availability before travelling.
